Bitvisus 4K60 Resolution Video Wall Controller with Seamless Switching and Multi-Window Control

Product Categories

Shenzhen Bitvisus Technology Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Bitvisus 4K60 Resolution Video Wall Controller with Seamless Switching and MultiWindow Control
Brand: Bitvisus
Price: 643 USD

Add to Cart

BITVISUS Free Roaming Zooming Image Processor 4 in 9 Out Video Processor

Product Overview

4K60 splicing seamless switching roaming switcher video processor designed for professional video wall applications.

Supports 4 channels of 4Kx2K@60 input with different resolutions per port and EDID management
Advanced input and output rotation capabilities: 90°, 180°, 270° input rotation and 180° output rotation
Comprehensive multi-window control for picture-outside-picture (POP), picture-in-picture (PIP), arbitrary picture overlay, roaming, cross-screen, and zoom functions
Signal cropping functionality to remove black edges and crop input signals for diverse picture control
Supports 16 splicing modes including horizontal screen 1x1 to 1x9, vertical screen 9x1 to 1x1, and field types 2x2, 2x3, 3x3, 2x4, 4x2
Seamless real-time switching with true "0" second input signal switching - no black field or lag during transitions
Advanced image effect adjustment for color, saturation, and other parameters to solve front-end signal color restoration issues
Multiple control methods: IR remote control, RS232, TCP/IP with keyboard shortcut keys, screen freezing, and screen mirroring functions
Compatible with computers, Android boxes, game consoles and other devices as input sources
Works with self-developed window software for enhanced functionality

Product Specifications

Product Name	BIT-VP-U1-IC409Pro
Input Interface Type	HDMI2.0x4, DP1.2x2
HDCP	2.2
Input Interface Maximum Video Pixel Frequency	600MHz
Maximum Resolution	4096x2160@60Hz
Color Format	RGB444, YUV444, YUV422, YUV420
Input Color Depth	24bit
Output Interface Type	HDMI1.3x9 (≤15m), HDMI2.0x1 (LOOP, optional)
Output Interface Maximum Video Pixel Frequency	165MHz
Output Resolution	1920x1080@60Hz / 1920x1200@60Hz
Control Method	Infrared remote control, serial port RS232, PC host computer
Power Supply	DC12V/5A
Power Consumption	30W
Storage/Working Temperature	-10 to 50ºC / 0 to 50ºC
Shell Material	All iron, all aluminium options
Product Size	LxWxH: 437mm x 177mm x 45mm
Package Size	LxWxH: 540mm x 290mm x 110mm
Product Weight	2.2KG (iron), 1.5KG (aluminium)
Packing Weight	3.7KG (iron), 3.1KG (aluminium)

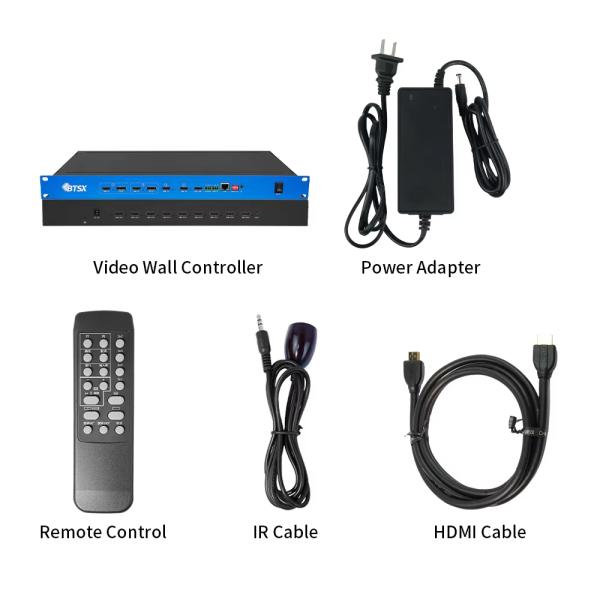

Accessories List	12V/5A power supply x1, IR receiver head x1, remote control x1, certificate of conformity x1, warranty card x1, network cable x1, HDMI or DP cable x1, USB to RS232 serial cable (optional)
After-sales Warranty	3-year warranty

Features at a Glance

Company Profile

Frequently Asked Questions

Why Choose Bitvisus?

We maintain our own warehouse to ensure shipping within 48 hours after payment (excluding weekends and holidays)
OEM/ODM services available for custom requirements
Comprehensive product portfolio including Video Wall Controllers, Multiscreen Expanders, Multiviewers, Embedded Projector Fusion systems
Extensive R&D experience and proven product quality assurance
