    High Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM Extender

    Ask Lasest Price
    Brand Name : Bitvisus
    Model Number : BIT-Ex-Fib-4K60-KVM
    Certification : ce
    Price : 261.54
    Payment Terms : Paypal, HSBC, T/T,Visa
    Supply Ability : 1000Piece/30day
    • Product Details
    • Company Profile

    High Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM Extender

    Bitvisus High Definition IR RS232 Signal HDMI Audio Out 10Km 4k HDMI USB KVM Extender

    Product Features

    ☞Supports 4K ultra-high-definition picture quality, utilizing the industry's most advanced video processing chip. Offers long transmission distance with efficient power consumption.

    ☞Capable of transmitting signals up to a maximum distance of 30 km, equipped with HDMI interface for both input and output.

    ☞Supports a maximum resolution of 3840x2160@60Hz and is backward compatible with lower resolutions.

    ☞Features USB-HID functionality, with dual USB interfaces for connecting a mouse and keyboard.

    ☞Offers zero delay and uncompressed long-distance transmission. Easy to install, simple to operate, and plug-and-play ready.


    ☞Contact customers
    Welcome to consult the project function requirements!High Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM Extender
    High Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM ExtenderHigh Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM ExtenderHigh Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM ExtenderHigh Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM ExtenderHigh Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM ExtenderHigh Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM ExtenderHigh Definition IR RS232 Signal HDMI Audio Extender 10km 4k HDMI USB KVM Extender
    Specification

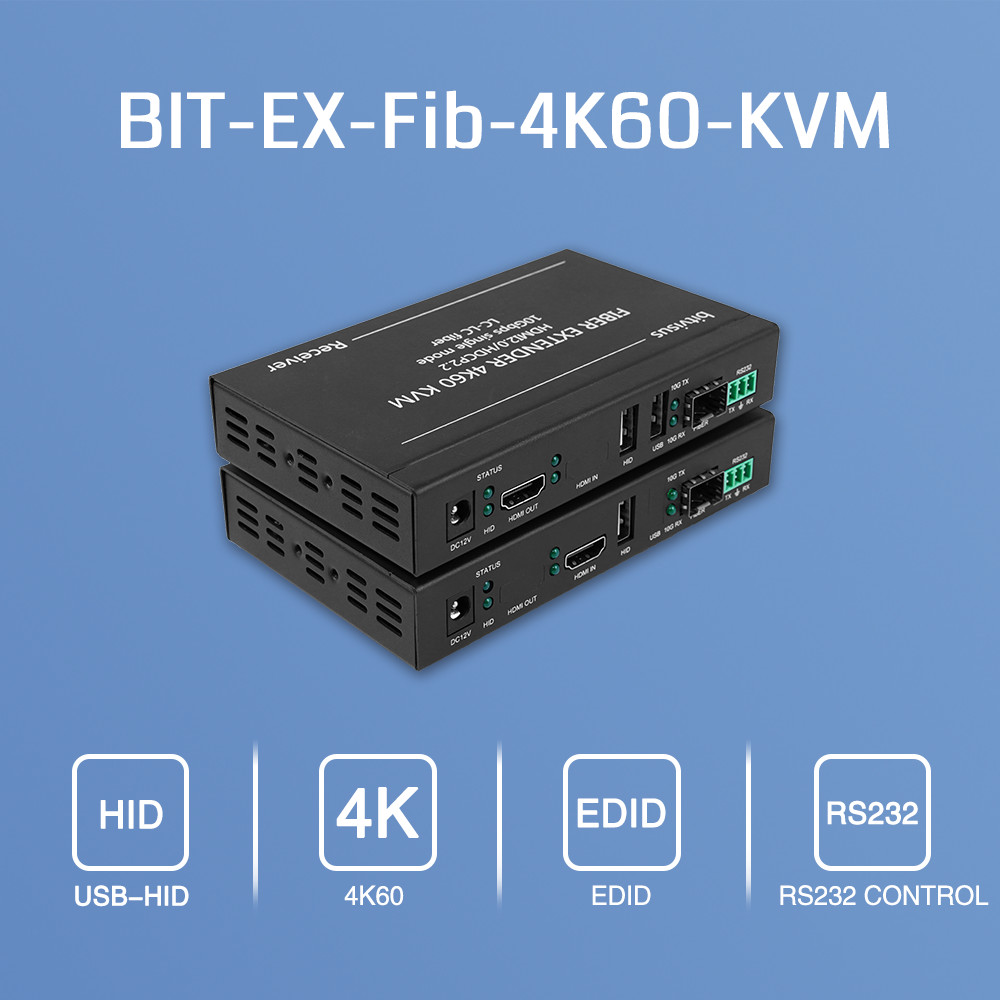

    BIT-Ex-Fib-4K60-KVM
    EnterTransmitter ( TX)HDMI 2.0 (≤ 5 m) , IR, RS232 signal
    Receiver ( RX)

    LC-LC single- mode single-core/dual -core optical fiber, 10KM

    LC-LC multimode fiber, 300 M

    OutputTransmitter ( TX)

    LC-LC single mode fiber /dual core fiber, 10KM

    LC-LC multimode fiber, 300 M

    Receiver ( RX)HDMI 2.0 (≤ 5 m) , IR, RS232 signal
    AudioHDMI audio out
    OtherSupport resolution4K 6 0Hz backward compatible ( horizontal resolution ≤ 5760 , vertical resolution ≤ 3600 )
    Signal formatSupports common resolutions under various input signal formats ; supports common signal formats of VESA and HDTV
    Color spaceSupport RGB444 ; YUV color space
    Pixel bandwidth594 MHz
    Transmission bandwidth10.2G bps
    Transmission distance

    Single mode single fiber: 10KM

    Single mode dual fiber: 10KM

    Multimode dual fiber: 300M

    KVMUSB 1.0 , keyboard and mouse
    CECsupport
    RS232Two-way RS232 transparent transmission
    3Dsupport
    Remote wake upsupport
    Interface ProtocolHDMI 2.0 , HDCP 2.2 Compatible with DVI1.0, VGA

    EDID

    Fixed transmission / transparent transmission

    support
    OEMsupport
    Power supplyDC 12V 2A
    Power consumption≤7W _ _
    Storage/Working Temperature-10~50ºC/-25~55ºC
    UseHDMI, KVM, RS232 signal extension
    SpecificationSize105*76*27mm
    WeightAbout 0. 9 KG
    Ppacking list

    Device *2, power supply * 2 , double-headed USB cable *1,

    Single-mode dual-core optical module ( standard configuration) *2 , certificate of conformity *1, warranty card *1

    After-sales service1 year warranty
