Shenzhen Bitvisus Technology Limited
2 Years
| Ask Lasest Price | |
| Brand Name : | bitvisus |
| Model Number : | BIT-Ex-HBT-70 |
| Certification : | FCC |
| Price : | 102.3 |
| Payment Terms : | Paypal, HSBC, T/T,Visa |
| Supply Ability : | 1000Piece/30day |
| Delivery Time : | 7-30day |

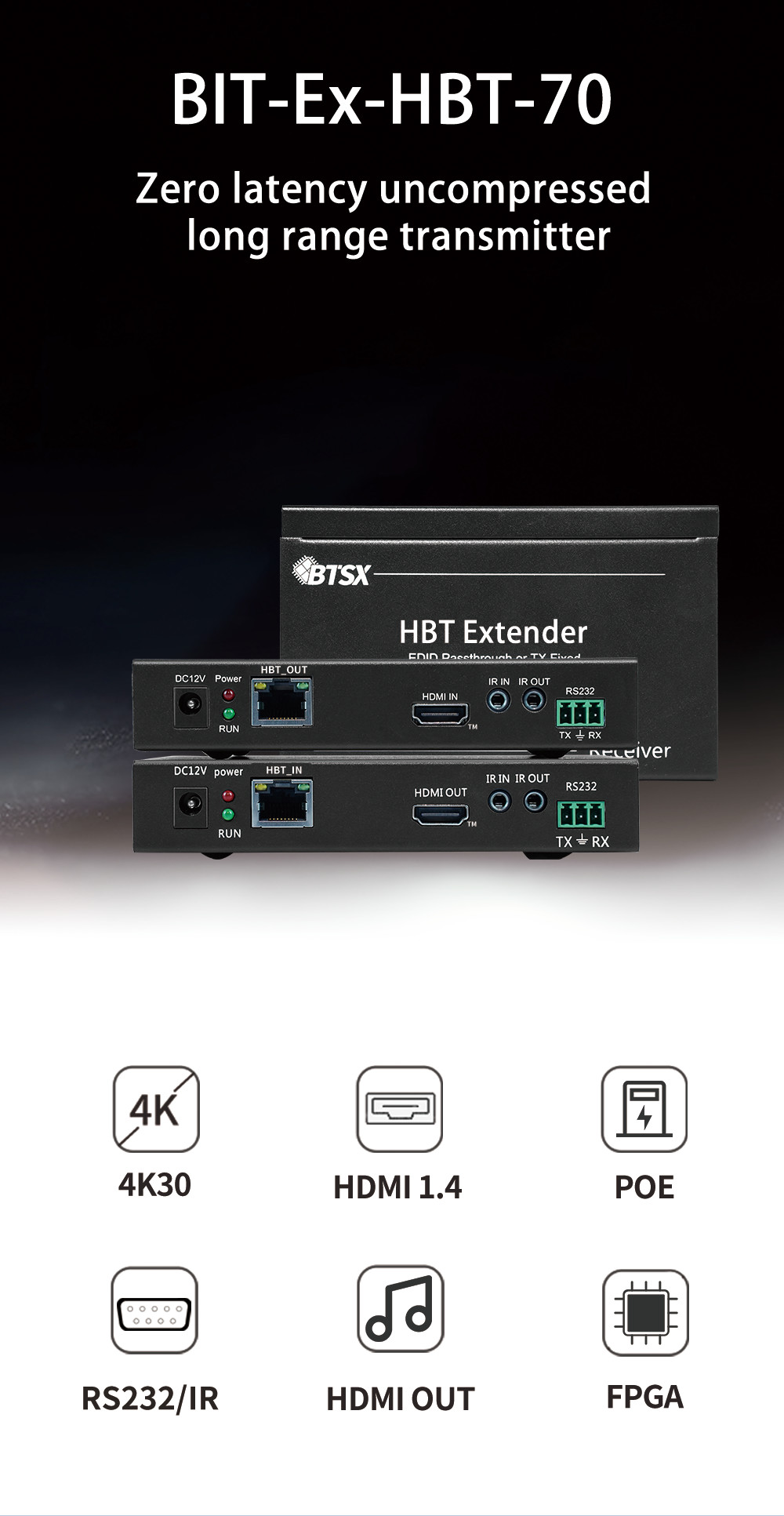

An advanced HDMI 1.4 HD video signal extender, the BIT-Ex-HDBT-70, is designed to seamlessly transmit signals over various network cables, effectively extending transmission distances beyond the typical 230-feet limit of traditional Ethernet. Boasting support for 4Kx2K @ 30Hz resolution with backwards compatibility for lower resolutions, it ensures unparalleled visual clarity. For 4Kx2K @ 30Hz HDMI signals, it utilizes Cat.5e or Cat.6 cables with a maximum reach of up to 130 feet, leveraging the HDBaseT standard for reliable, uncompressed video transmission. This extender, with its low-power fanless design and POE capability, simplifies installation and reduces maintenance costs, making it ideal for multi-screen setups, projection fusion projects, and other AV applications that demand extended signal reach.
| BIT-E x-HDBT-70 | ||
| import | transmitting terminal (TX) | HDMI 1.4 (5m), IR, RS232 signal |
| receiving terminal (RX) | CAT 6E,70m | |
| output | transmitting terminal (TX) | CAT 6E,70m |
| receiving terminal (RX) | HDMI 1.4 (5m), IR, RS232 signal | |
| audio frequency | HDMI, the audio comes out with you | |
| other | Support resolution | 4K30H z downward compatibility; 7680x1200@30,5760X1200@30,7680X1080@30 |
| signal format | Support common resolution in various input signal formats; support common signal formats for VESA and HDTV | |
| Color space | Support for RGB444; YUV color space | |
| Pixel bandwidth | 165 MHz / 300 MHz, full number | |
| Transmission bandwidth | 10.2G bps | |
| transmission distance | 1080p resolution CAT 6,70m 4k 30 resolution CAT 6 E, 40m | |
| CEC | support | |
| RS232/IR | bidirectional RS232 transmission / bidirectional IR | |
| 3D | support | |
| POE supply electricity | One-way power supply | |
| Interface protocol | HDMI 1.4, HDCP 2.2 is compatible with DVI 1.0, VGA | |
EDID Solid transmission / through transmission | support | |
| OEM | support | |
| source | DC 12V 2A | |
| power dissipation | ≤12W | |
| Storage / operating temperature | -10～50ºC/-25～55ºC | |
| use | The HDMI, KVM, IR, and RS232 signal was prolonged | |
| specifications | size | 105*76*27mm |
| weight | About 0.5KG | |
| packing list | Equipment * 2, power supply * 1, certificate * 1, warranty card * 1 | |
| after-sale service | The warranty is 1 year | |
