BIT-VWC-409R 4K 4in 9out Video Wall Controller/ Video Display Wall
Processor/ Video Processor
409R is a cutting-edge and highly versatile solution for advanced video
processing needs.
With support for multiple high-definition input sources, including
4K and DisplayPort, and an array of output
options, it offers exceptional flexibility in creating custom
splicing configurations.
Its ability to handle various splicing modes, including horizontal,
vertical, and custom shapes, along with
support for cascade or parallel setups, makes it adaptable to a
wide range of applications. The splicer’s multi
window capabilities, allowing for up to four windows on the screen,
provide extensive flexibility in designing
complex video layouts. Users can assign input sources to specific
windows, enhancing customization.
Notably, it maintains the highest image quality, with no
stretching, deformation, or compression of input
sources, ensuring clear and pristine visuals. Convenient control

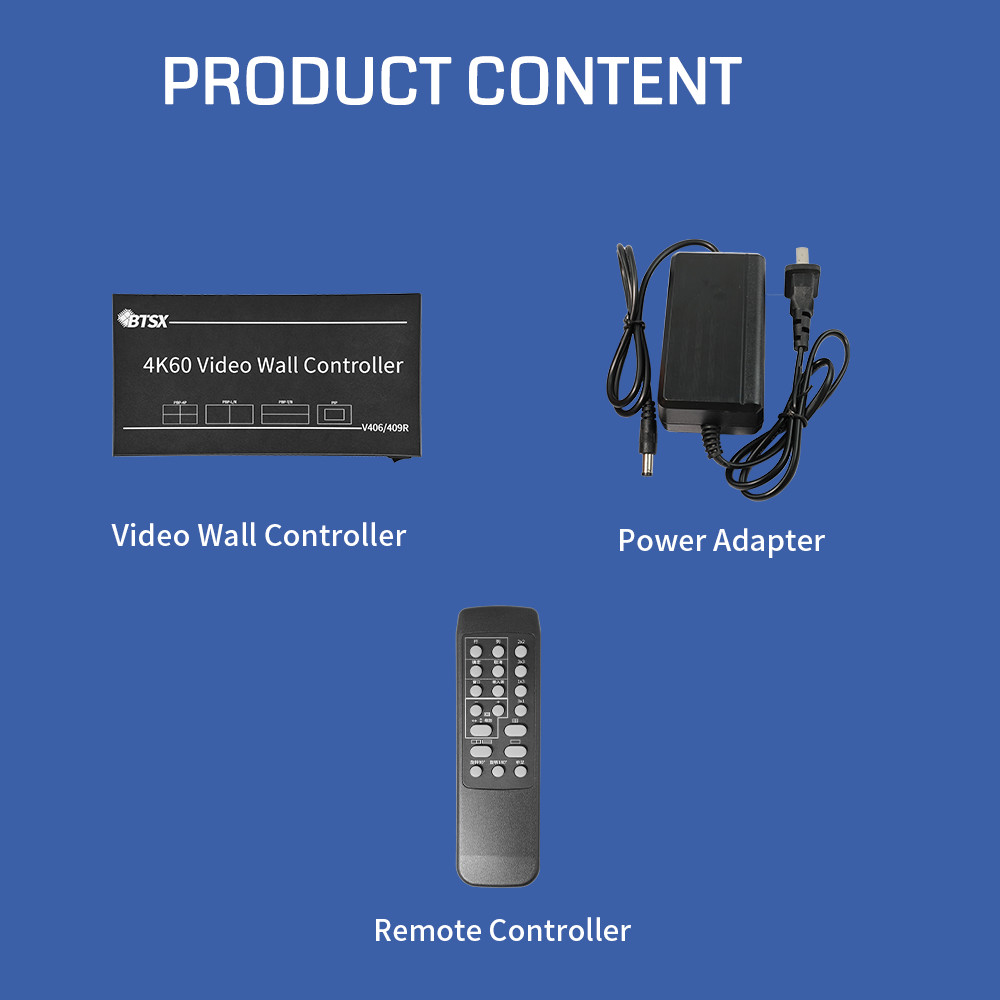

options, including an infrared remote and
serial RS232 control, make it user-friendly and accessible.
Features
• The device is plug-and-play, ensuring no image distortion,
compression, or stretching of input sources. It
supports 90° input source rotation and 180° output line rotation.

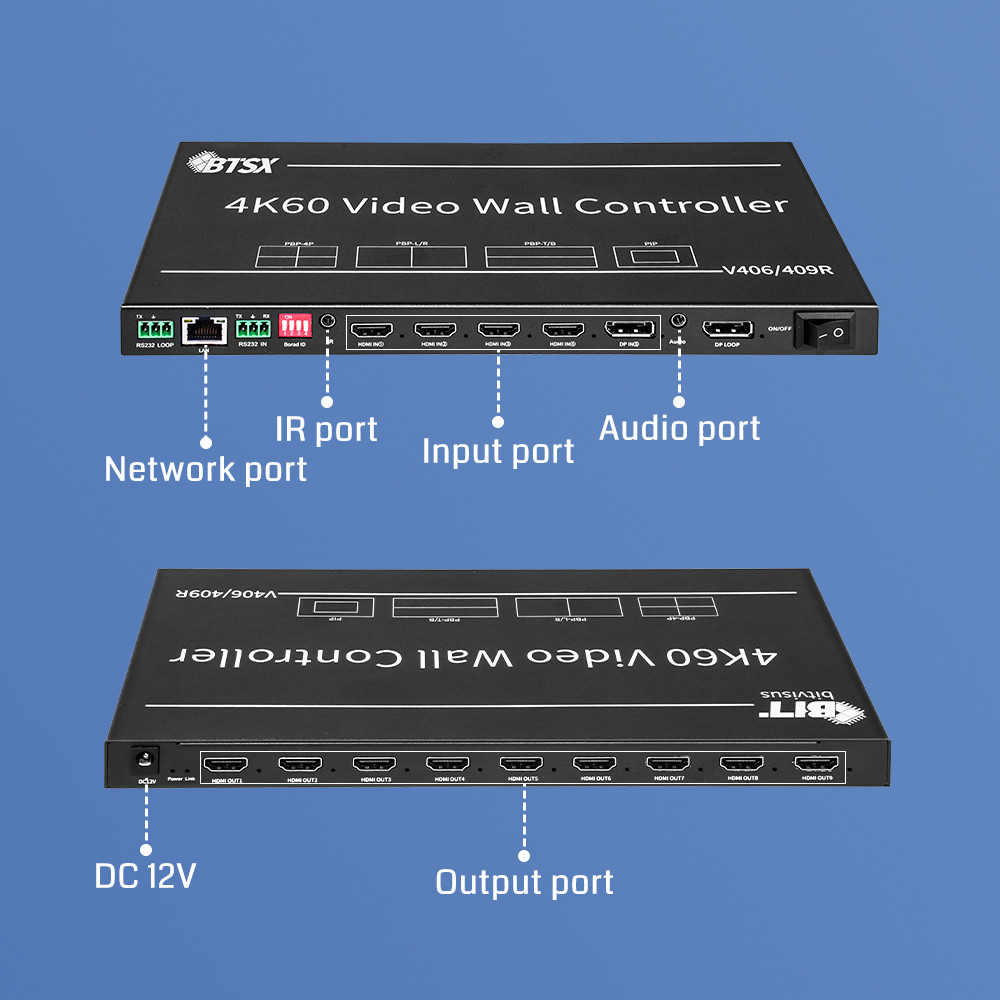

• Equipped with HDMI 2.0 and DP 1.2 inputs, it can drive six HDMI
outputs with various display modes,
including 2x2, 2x3, 3x2, 1x3, 3x1, 1x4, and 4x1. It supports
multiple picture-in-picture modes and multi
device parallel use.
• The single output supports a maximum resolution of 1920x1080@60Hz,
while it can handle input sources
with a maximum resolution of 3840x2160@60Hz.
• It uses a high-end 40nm programmable FPGA chip and full hardware
real-time processing architecture
for seamless switching modes without noticeable delays.
• Ideal for applications such as exhibition halls, indoor advertising
video walls, digital signage, commercial
displays, control rooms, and interactive projections.
If any interesting or questions, pls do not hesitate to contact us:
Tel/Whatsapp/Wechat: +86 18682365831
Skype: 8618682365831
Email: mango@bitvisus.com
