| Brand Name : | bitvisus |
| Model Number : | BIT-MV-4K60-401 |
| Certification : | CE,HDMI,HDCP,RoHS,FCC |
| Price : | Contact Us |
| Payment Terms : | Paypal, T/T, |
| Supply Ability : | 1000Piece/30day |
| Delivery Time : | 7-30day |
Custom Attributes & Unique Selling Points:
Intelligent Image Optimization Engine: The BIT-MV-4K60-401 features
an advanced Intelligent Image Optimization Engine that
automatically enhances image quality, adjusting colors, contrast,
and sharpness to deliver the most vivid and realistic visuals
possible. This ensures that every frame is optimized for maximum
impact, regardless of the source material.
Seamless Multi-Screen Synchronization: With built-in multi-screen
synchronization technology, the processor ensures that all
connected displays present a perfectly aligned and synchronized
image. This is especially useful in multi-screen environments like
surgical theaters or control rooms, where precision and consistency
are crucial.
Customizable Output Profiles: The BIT-MV-4K60-401 allows users to
create and save custom output profiles, tailored to specific
display requirements or content types. Whether you're working with
medical imaging, graphic design, or gaming content, you can easily
switch between profiles to optimize your visuals for each scenario.
Remote Management & Monitoring: For added convenience and
efficiency, the processor supports remote management and monitoring
via a dedicated software interface. This allows administrators to
configure settings, monitor system status, and troubleshoot issues
from anywhere with an internet connection.
Low Latency Processing: Ideal for real-time applications, the
BIT-MV-4K60-401 boasts low latency processing capabilities. This
ensures that video signals are processed and displayed with minimal
delay, making it perfect for fast-paced environments like gaming,
broadcasting, or live event production.
Rugged & Reliable Design: Constructed with high-quality components
and a rugged design, the BIT-MV-4K60-401 is built to withstand the
demands of professional use. Its durable housing and reliable
hardware ensure long-lasting performance, even in challenging
environments or under heavy workloads.
| Product Name | BIT-MV-4K60-401 |
| Input interface maximum video pixel frequency | 165MHz |
| Output interface maximum video pixel frequency | 594MHz |
| Input maximum resolution | 1920x1080@60Hz |
| Maximum output resolution | 3840x2160@60Hz |
| HDMI input interface | 4 x HDMI1.3 |
| HDMI output interface | 1 x HDMI2.0 |
| Control Mode | Remote Control, Button, RS232 |
| Factory default resolution | 1920x1080@60Hz |
| Input connector type | 4 HDMI inputs |
| Output interface type | 1 HDMI output |
| Size | Length, Width, Height (233mm*108mm*28.7mm) |
| Weight | 1.8KG |
| Power Supply | 12V@2A AC-DC power supply |
| Warranty | one year |
Product Features
1. The input supports HDMI 1.3, HDCP 1.4;
2. Supports single-screen rotation, left-right screen splitting, top-bottom screen splitting, four-screen splitting, equal-ratio splitting, one big and three small splits;
3. Pure hardware design, plug and play, no software required;
4. Support seamless switching and overall brightness adjustment;

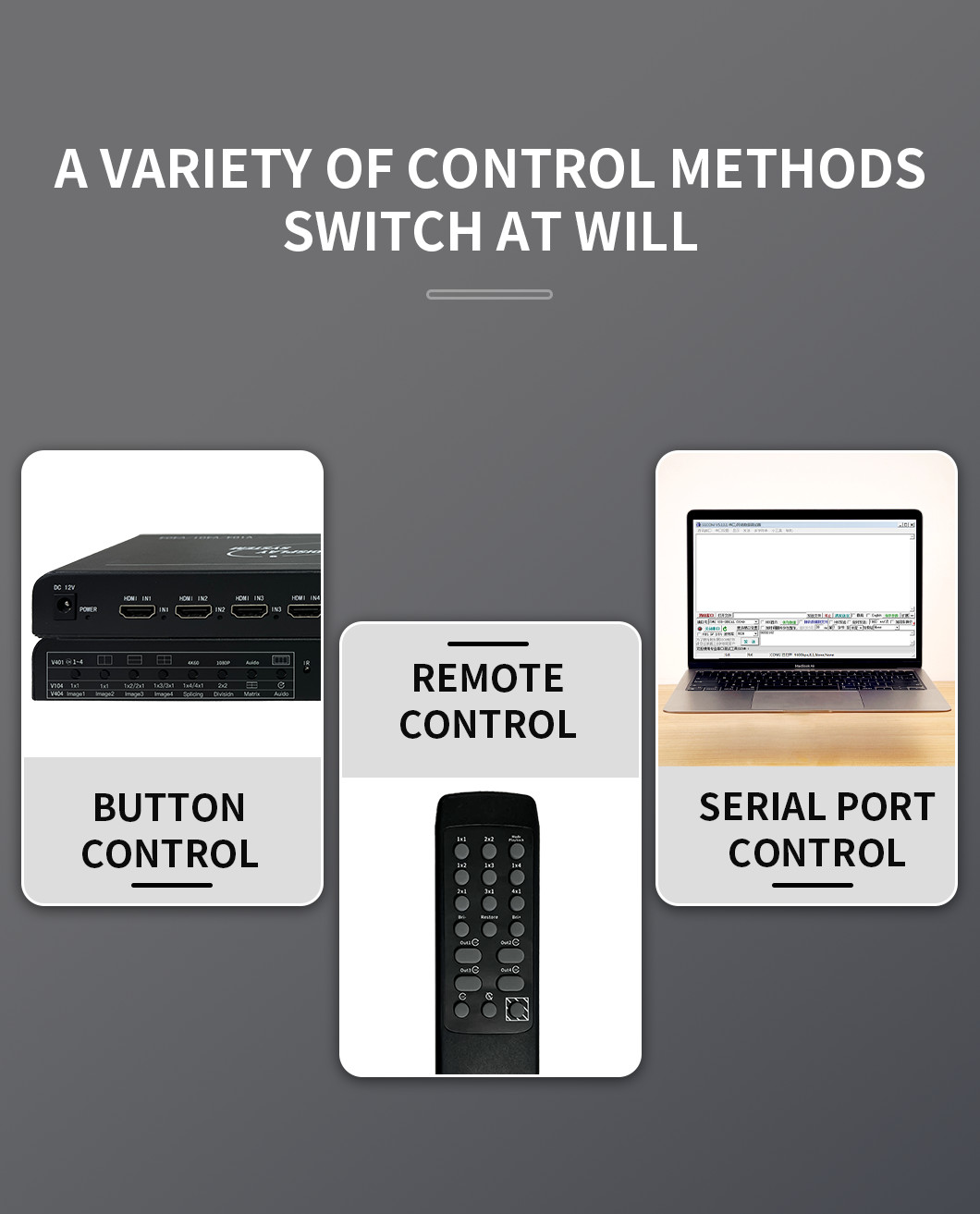

5. Support button control, remote control, serial port control;
6. Support audio channel switching, audio separation;
7. Low power consumption, energy saving and environmental protection design, the internal
use of conduction heat dissipation,
without any external heat dissipation measures, reliable sex is
very high.
